Laser cutter fume extractor
Based on idea from Zach
Material
| Qty | Part | Cost |
|---|---|---|
| 1 qm | Foam Air Conditioner Filter  6mm thick G3 | 10,00 € |

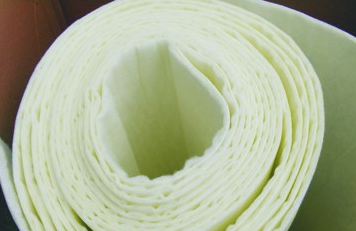

| 1 qm | Filtervlies  F7/F9 | 15,00 € |
| 1 | HEPA filter HEP-5018E  H13 Drawing Specification | 69,95 € |

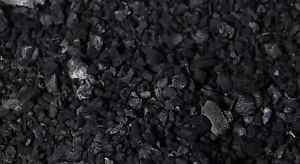

| 10kg | Activated carbon  0.5-2.5mm grain diameter (cocunut) | 70,00 € |

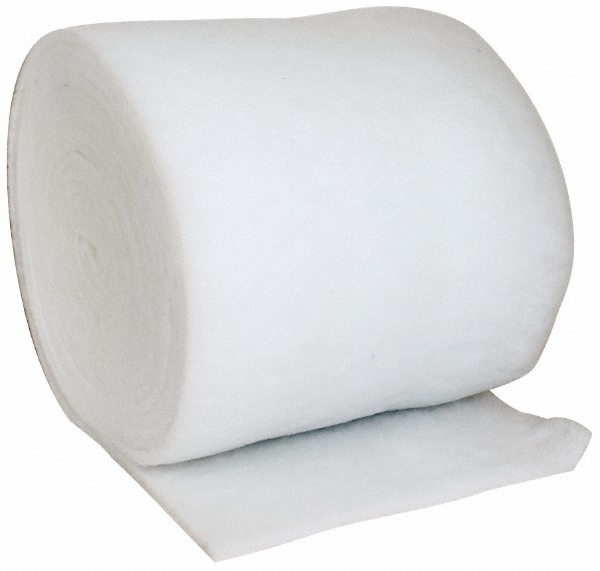

| 2 qm | Polyester Air Filter  20mm thick G4 | 30,00 € |

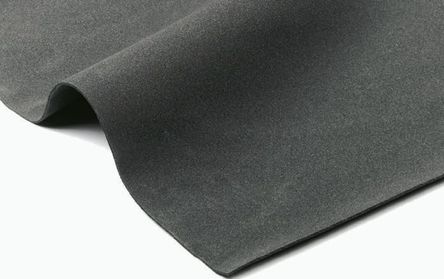

| 2 | Neoprene shelving liner  3mm thick soft 25x25cm sheet | 20.00 € |

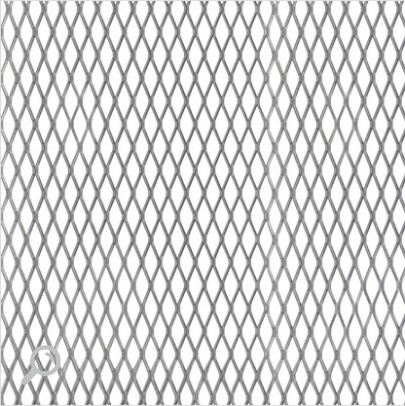

| 3 | Stainless mesh  3,4x6mm mesh 1,2mm wire width 25x50cm sheet | 15,00 € |

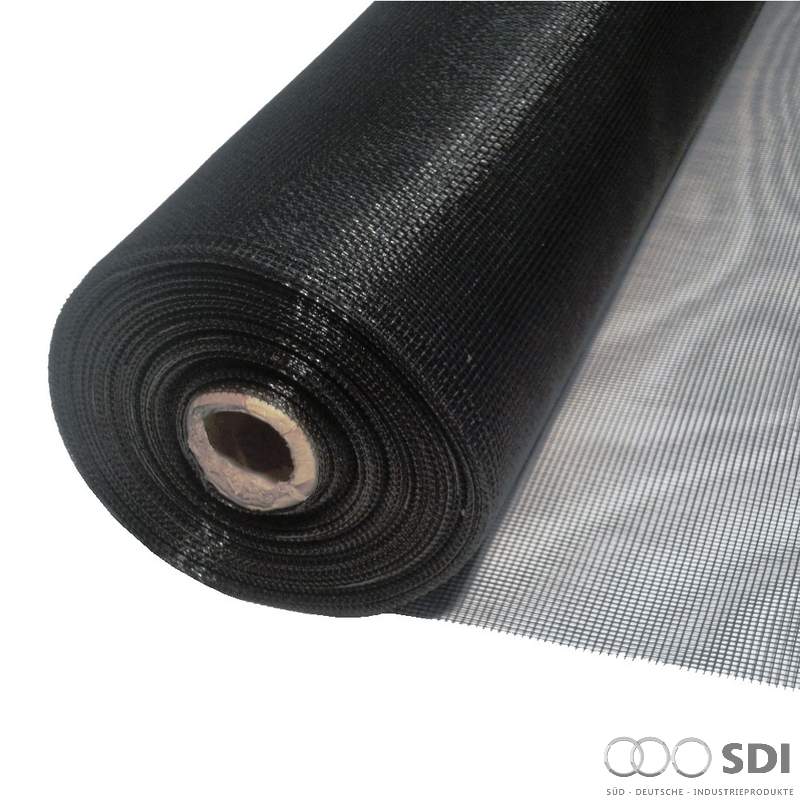

| 1 | Insect mesh  | |

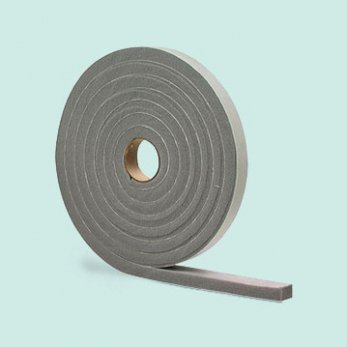

| 1 | Weather stripping  |

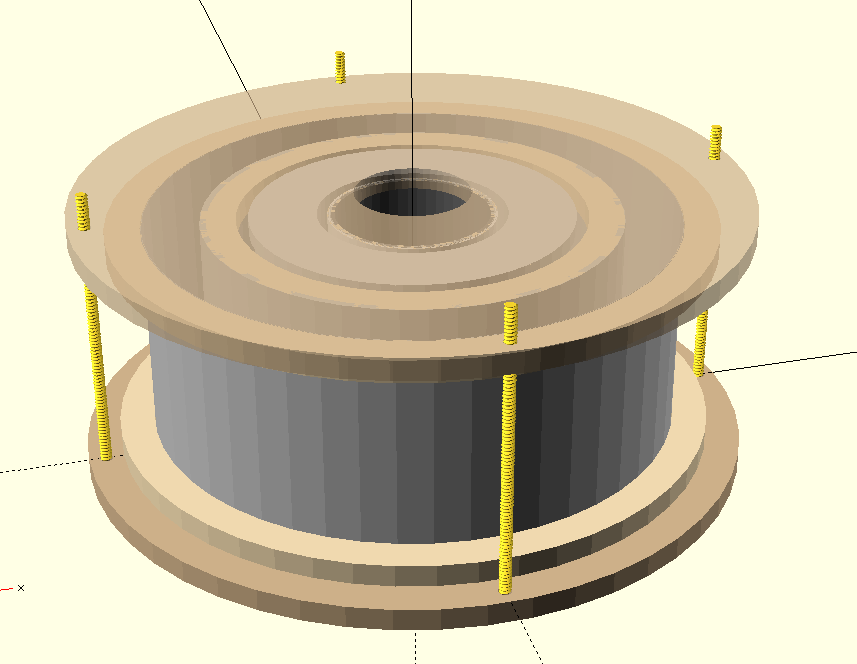

Filter Layer
from outside to inside (inverted air flow):
- Polyster Air Filter (200 x 1445 mm)
- Stainless mesh (200 x 1445 mm)
- Insect mesh (200 x 1445 mm)
- Activated carbon (12.9 liter)
- Insect mesh (200 x 1131 mm)
- Stainless mesh (200 x 1131 mm)
- HEPA filter
- 3M Filtrete (2 layer) (200 x 880 mm)
- Stainless mesh (200 x 440 mm)
- Foam Air conditioner filter (200 x 440 mm)
